Input of package

This section will tell you know about input of this package.

Text Files

Input files of this package is text file (.txt). When you want to use this package You need to prepare a text file in the following format:

  • line 1: number of tasks (n)

  • lines 2 - n+1: task times

  • lines n+2, …, last line: direct precedence relations in form “i,j”

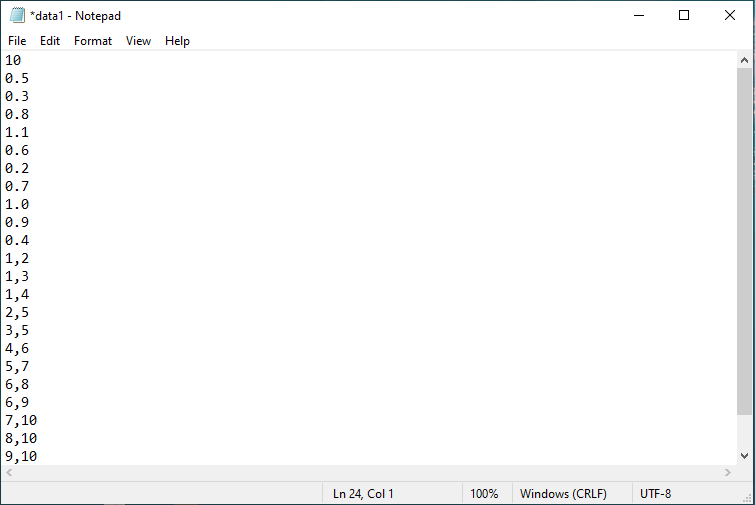

An example of a properly formatted text file is show below.

_images/input.png

Cycle time

When you run the function, it shows message “Enter the cycle time”. You must enter the cycle time for the function to be able to solve the problem.

  • lcr, rpw, comsoal, u_ga 🠒 Cycle time must larger than maximum processing time

  • parallel_ga 🠒 Maximum processing time cann’t exceed twice the cycle time

Enter the cycle time:

Population size

Population size only has in u_ga and parallel_ga. It is number of population size in genetic algorithm. It should have a value of 5 or higher. If you don’t know what value to use, you can enter “d” to use the default value is 30

Enter the population size (Default = 30):

Crossover rate

Crossover rate only has in u_ga and parallel_ga. it is probability to crossover in genetic algorithm. It should have a value of 0 to 1. If you don’t know what value to use, you can enter “d” to use the default value is 0.7

Enter the crossover rate (Default = 0.7):

Mutation rate

Mutation rate only has in u_ga and parallel_ga. it is probability to mutation in genetic algorithm. It should have a value of 0 to 1. If you don’t know what value to use, you can enter “d” to use the default value is 0.3

Enter the mutation rate (Default = 0.3):

Max generation

Max generation only has in u_ga and parallel_ga. it is number of generation in genetic algorithm. It should have a value of 1 or higher. If you don’t know what value to use, you can enter “d” to use the default value is 100

Enter the max generation (Default = 100):
